Platinum Ergo Curve Stairlift

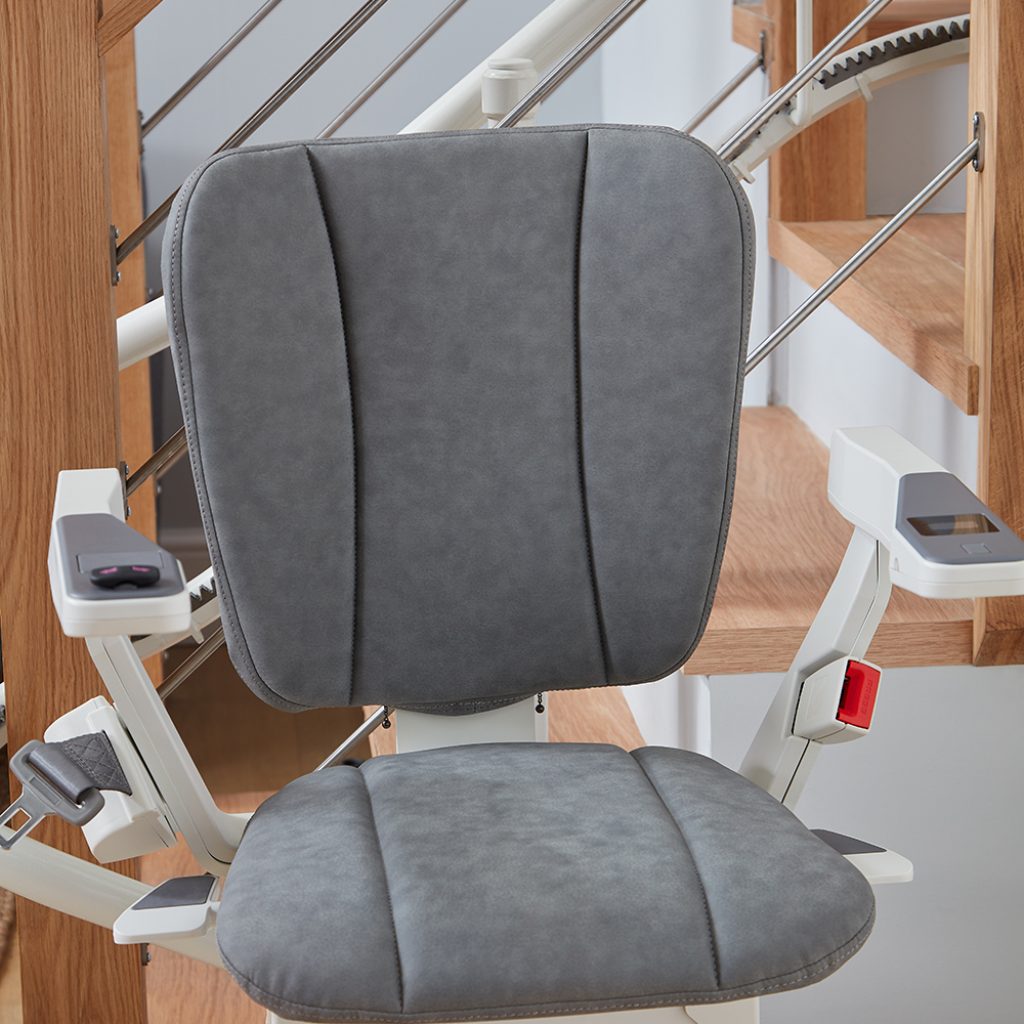

he seat width, depth, back height & arms can all be adjusted at the point of
installation to suit the individual users comfort and use

The chair control can easily be swapped left to right

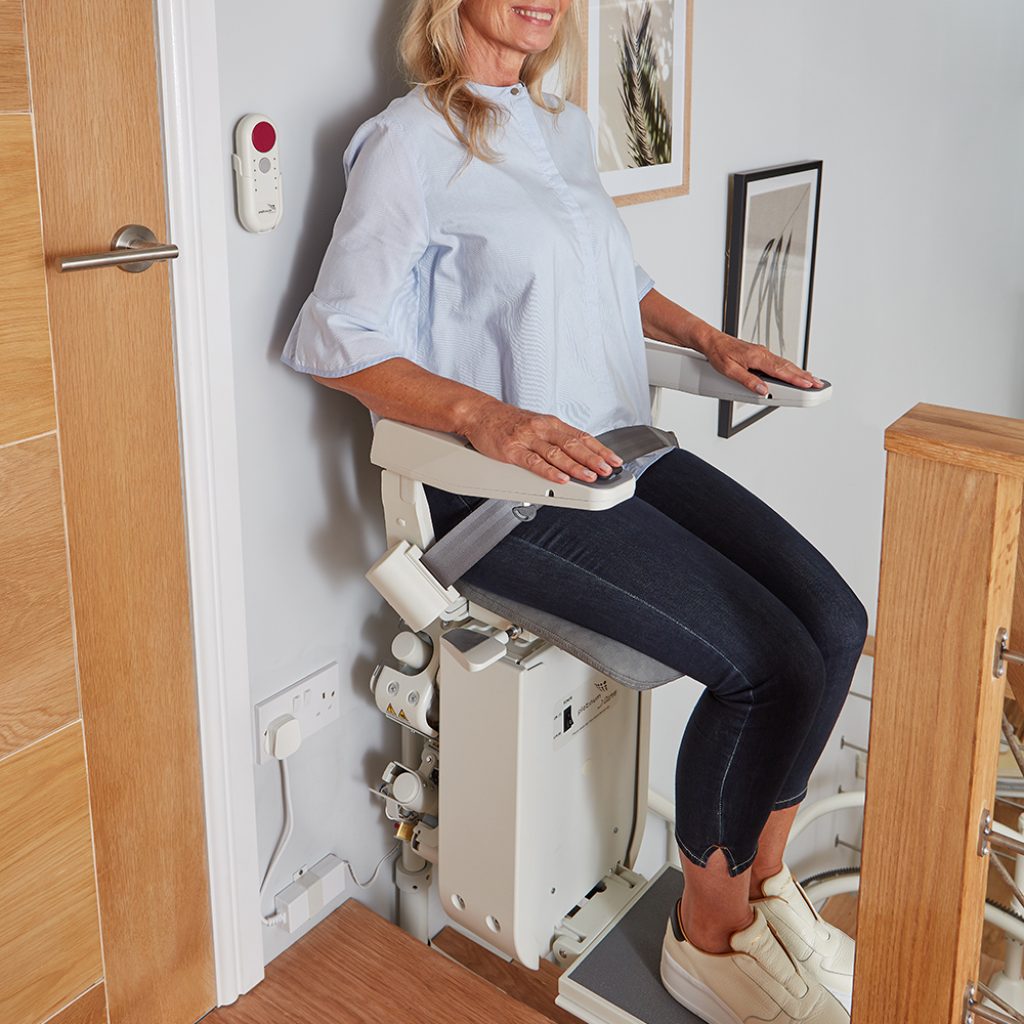

The ERGO chair comes with manual swivel function as standard and can easily be upgraded to powered swivel for improved safety and access at the top of the stairs

All its are supplied with a lever-linked footrest. The optional powered footrest can make folding the footrest away to make space on the stairs easier and safer.

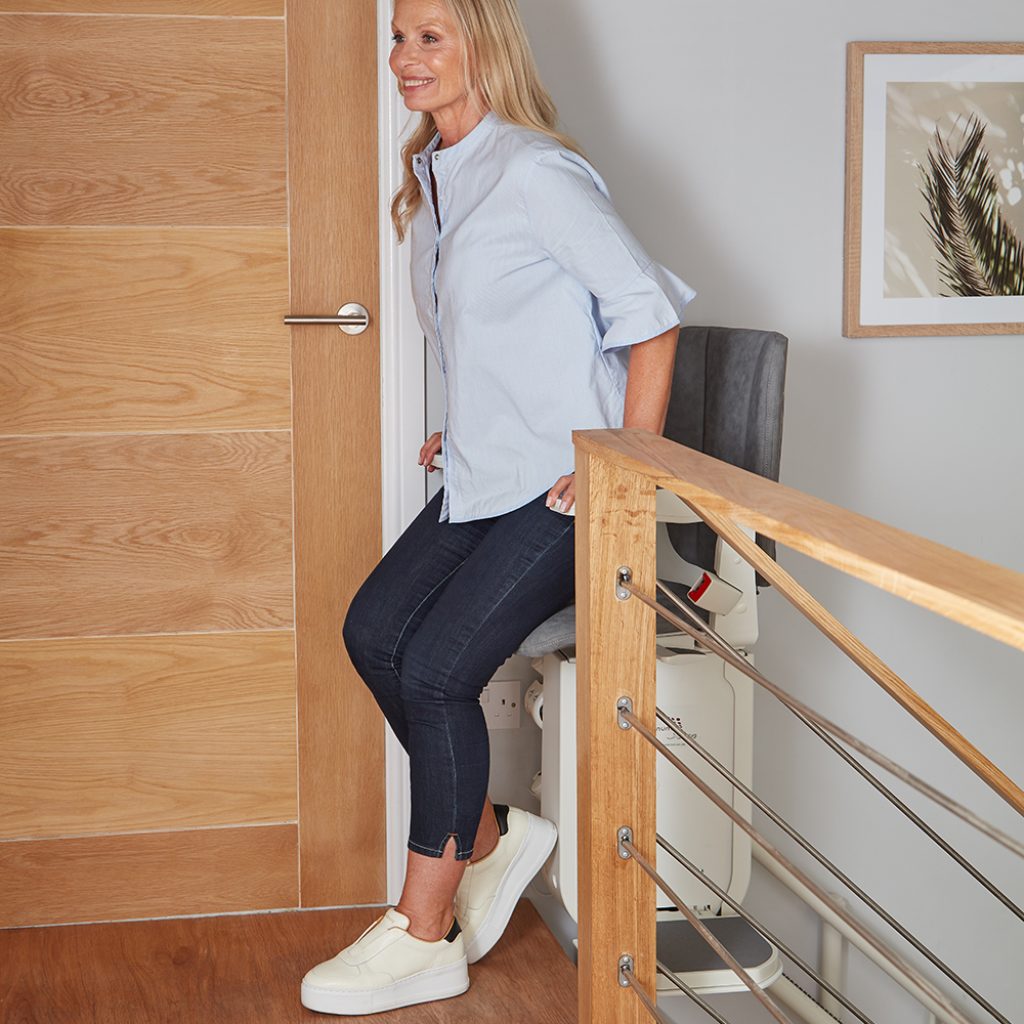

if access is tight at the bottom of the stairs, the new chair can turn 45° to allow additional space to easily get on and off (manual swivel only)

for improved safety, the lower arm and seatbelt can have a switch to prevent use unless the arm is down and seat belt used

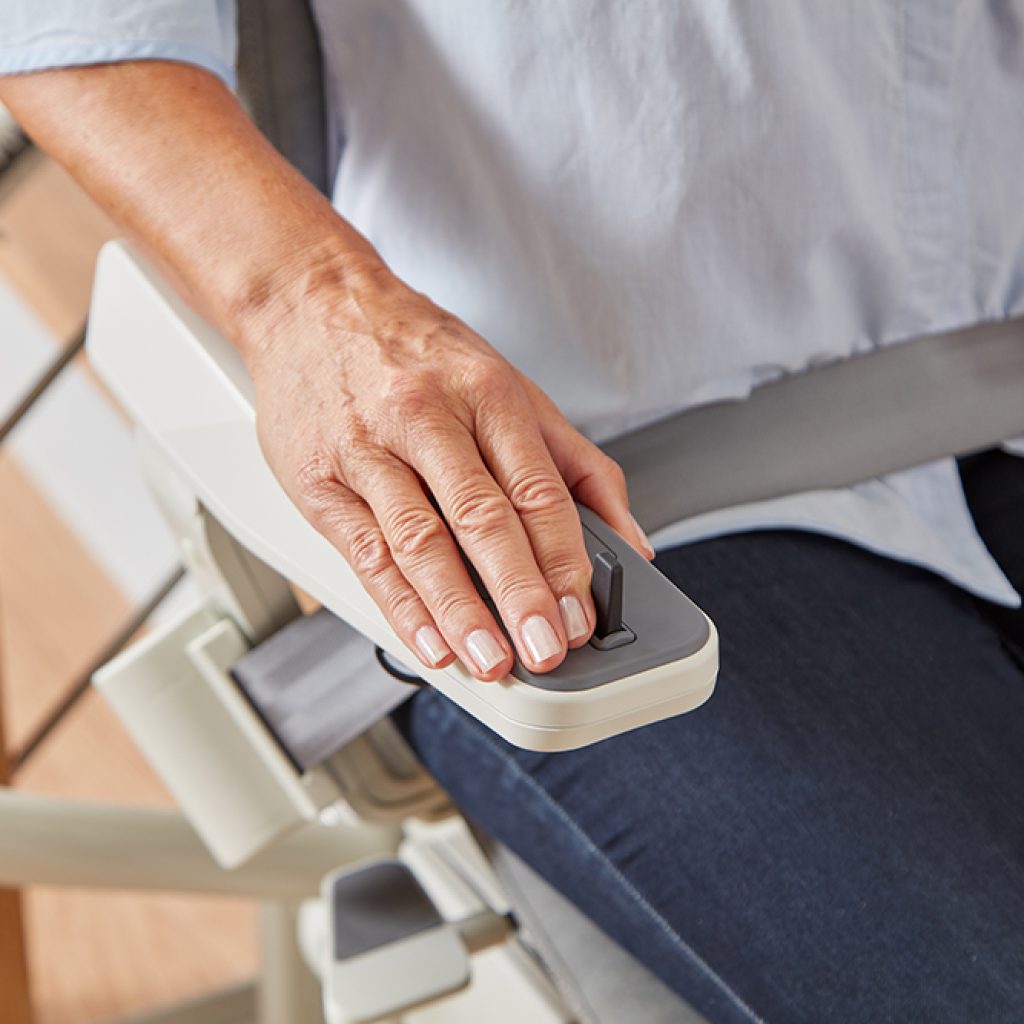

he chair control can be changed at install between rocker or joystick to suit the users individual needs

All add to the overall feeling or quality and durability

The ERGO Curve is deigned, certified and manufactured to meet the exacting requirements of the most stringent design and safety standard for stairlifts in the world today. This way you can be assured of the highest levels of safety and function.

The standard Platinum ERGO Curve stairlift is rated to carry a user up to 120kg.

For larger users, the ERGO Curve HD will carry up to 160kg and now features the option, and additional functionality, of a Powered Swivel seat to turn the chair toward the landing upstairs.

A powered swivel seat means that the entire operation of the lift is controlled with a single operation from the chair arm control making it simpler and safer to operate.

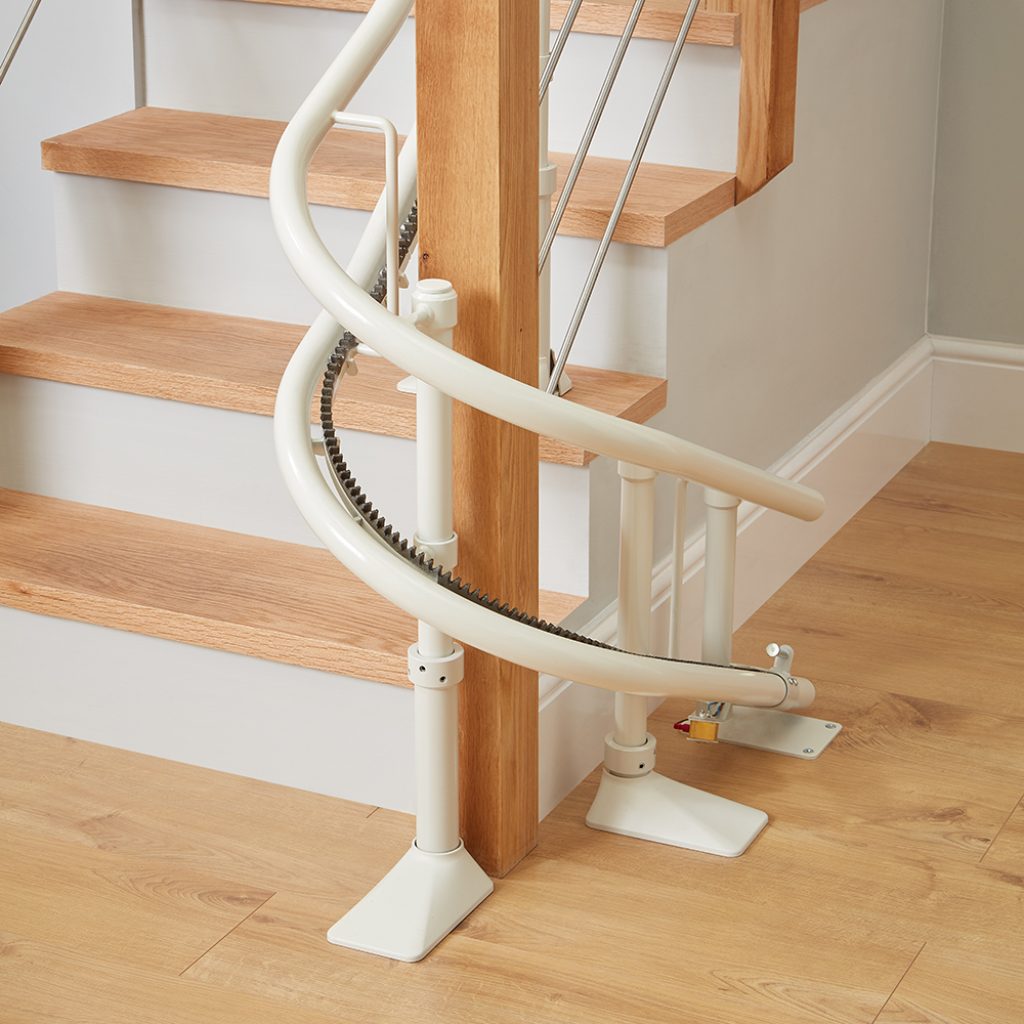

The industry leading tight 200mm inside bend radius means that we can fit to narrower stairs, and that the rail fits closer to the wall or handrails so there is more clear space on the stairs for other users.

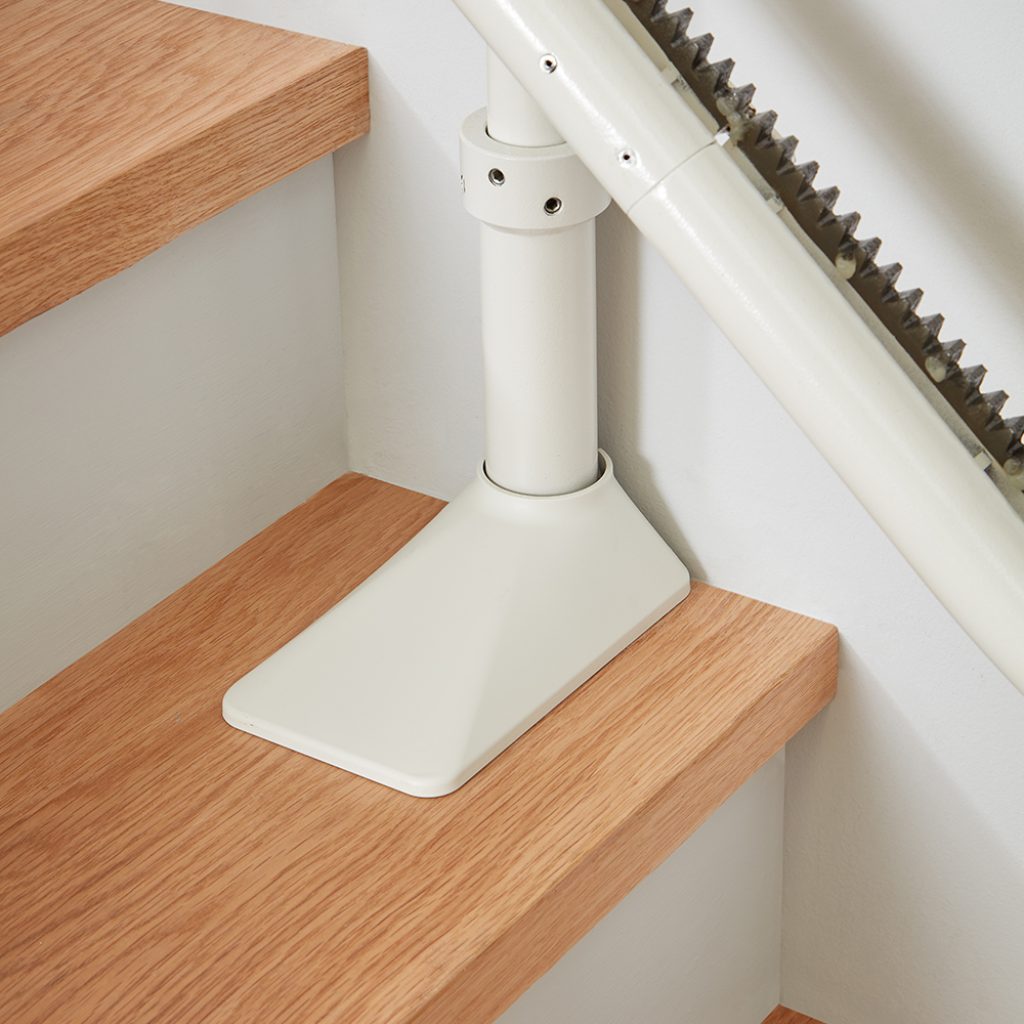

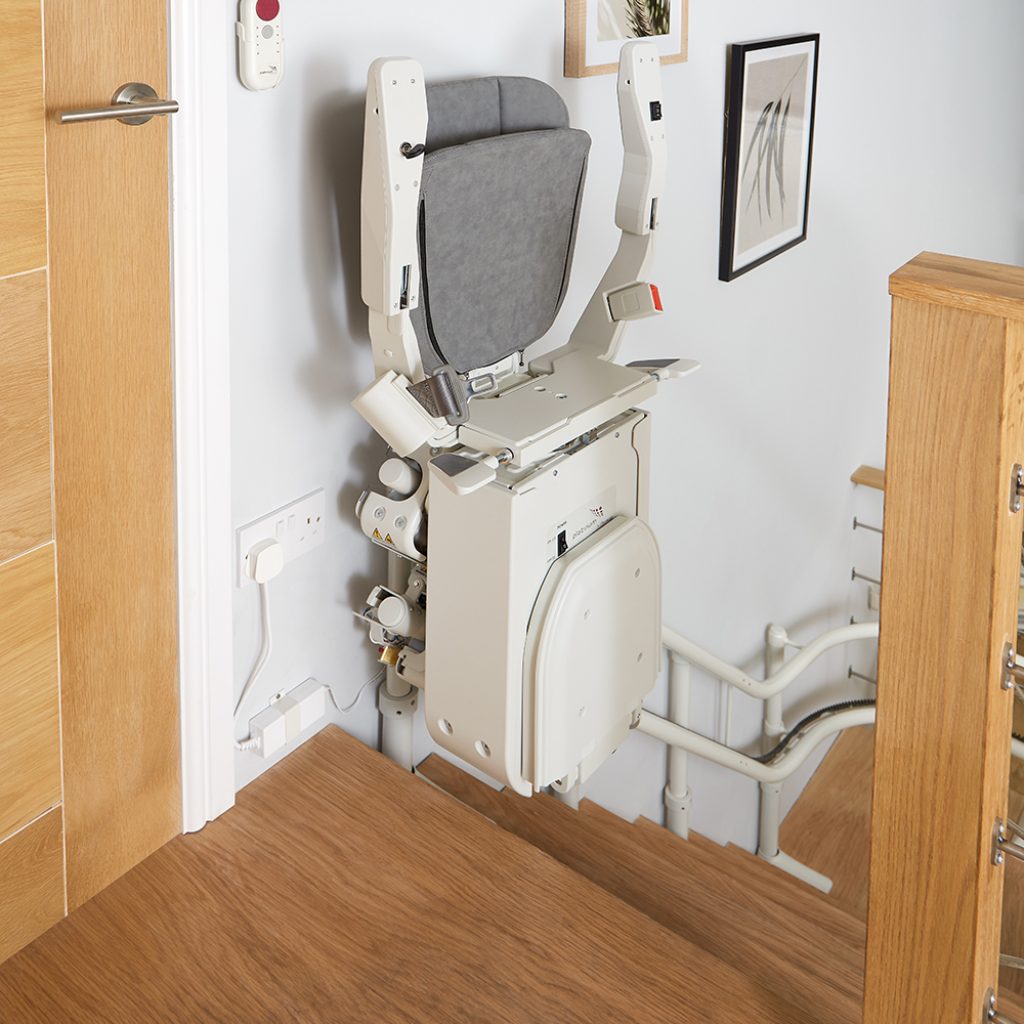

The rails fit close to the wall, typically only 140mm along a straight stair flight ensuring maximum free space.

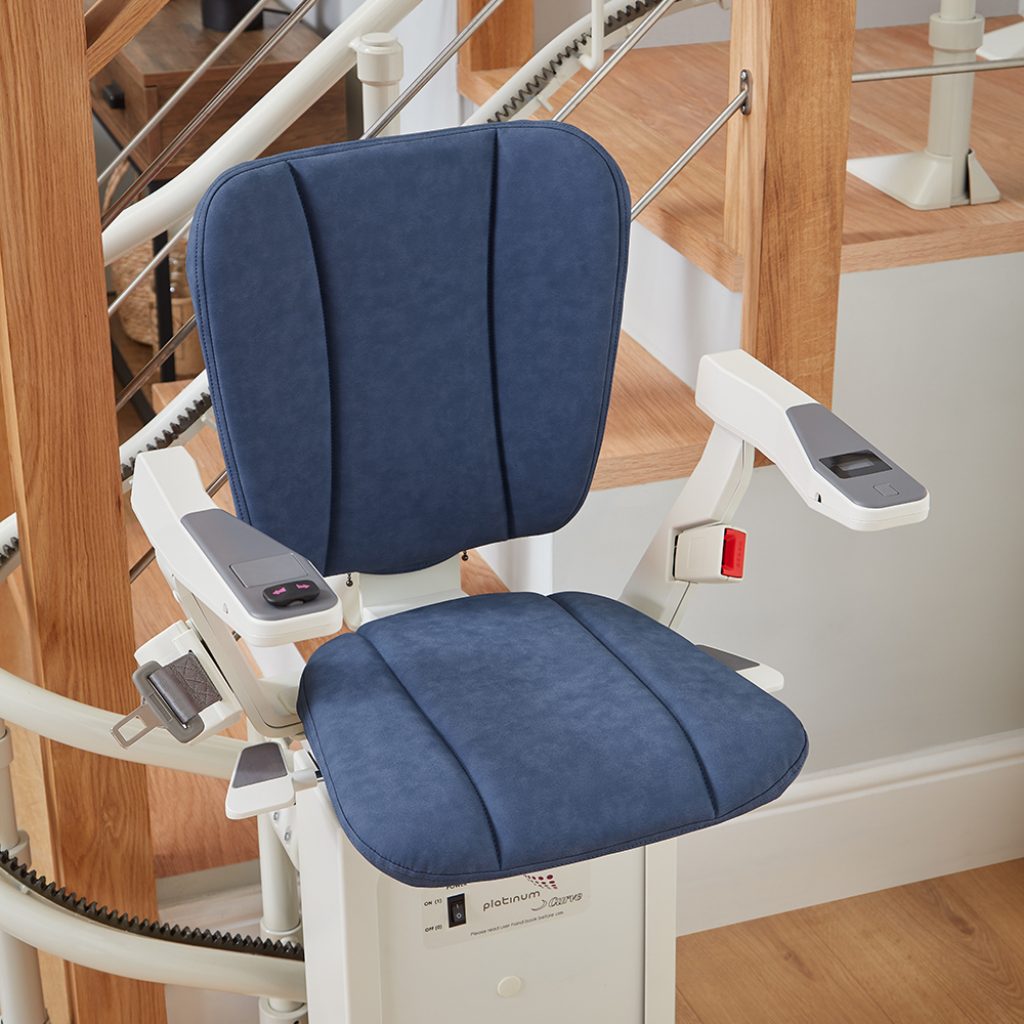

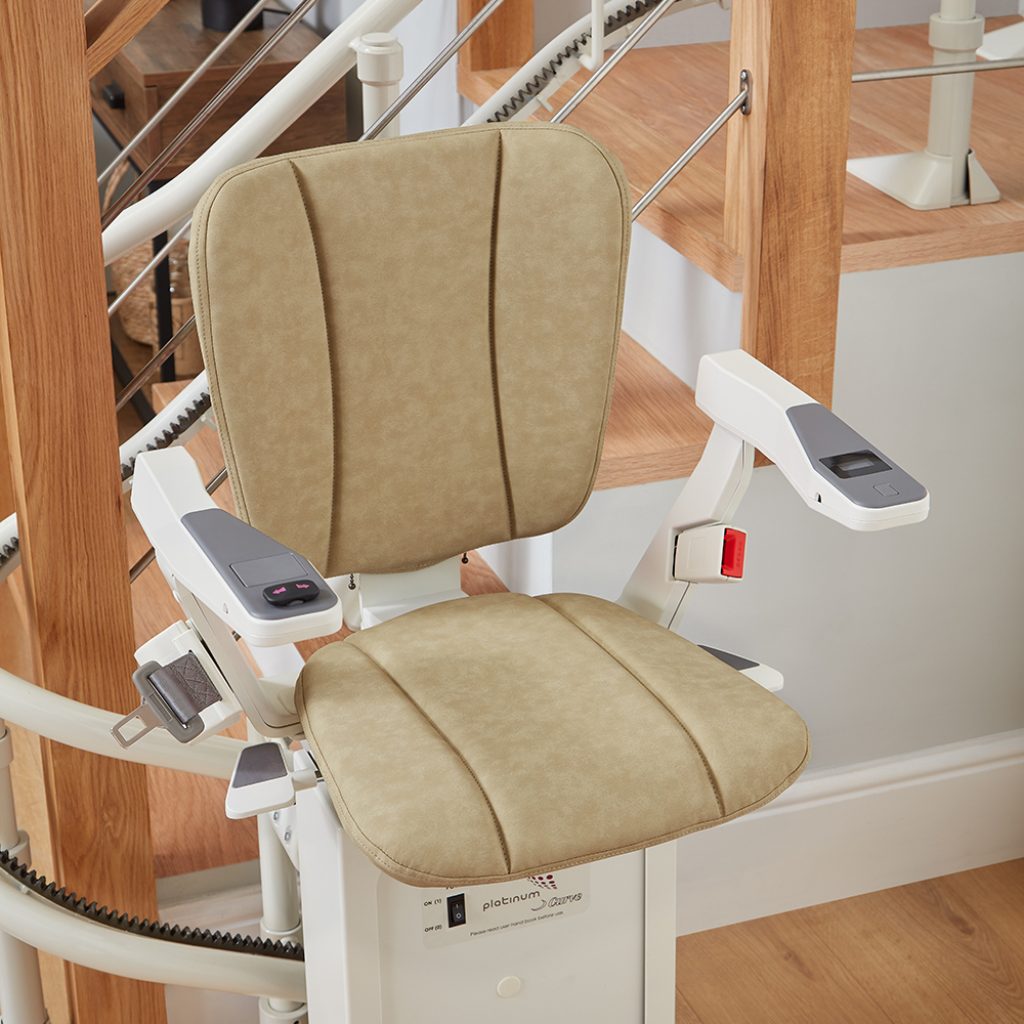

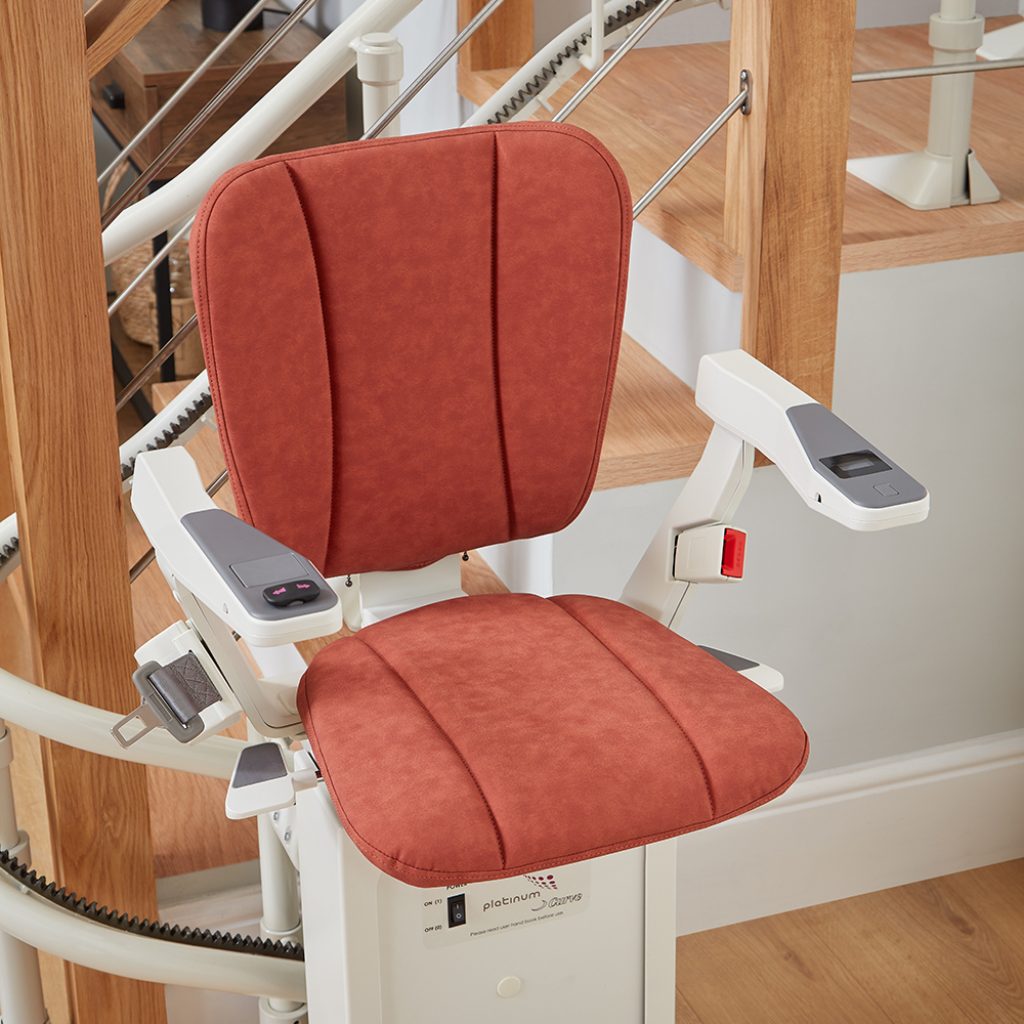

The standard ERGO seat base is a conventional shaped base that will suit most users and stairs.

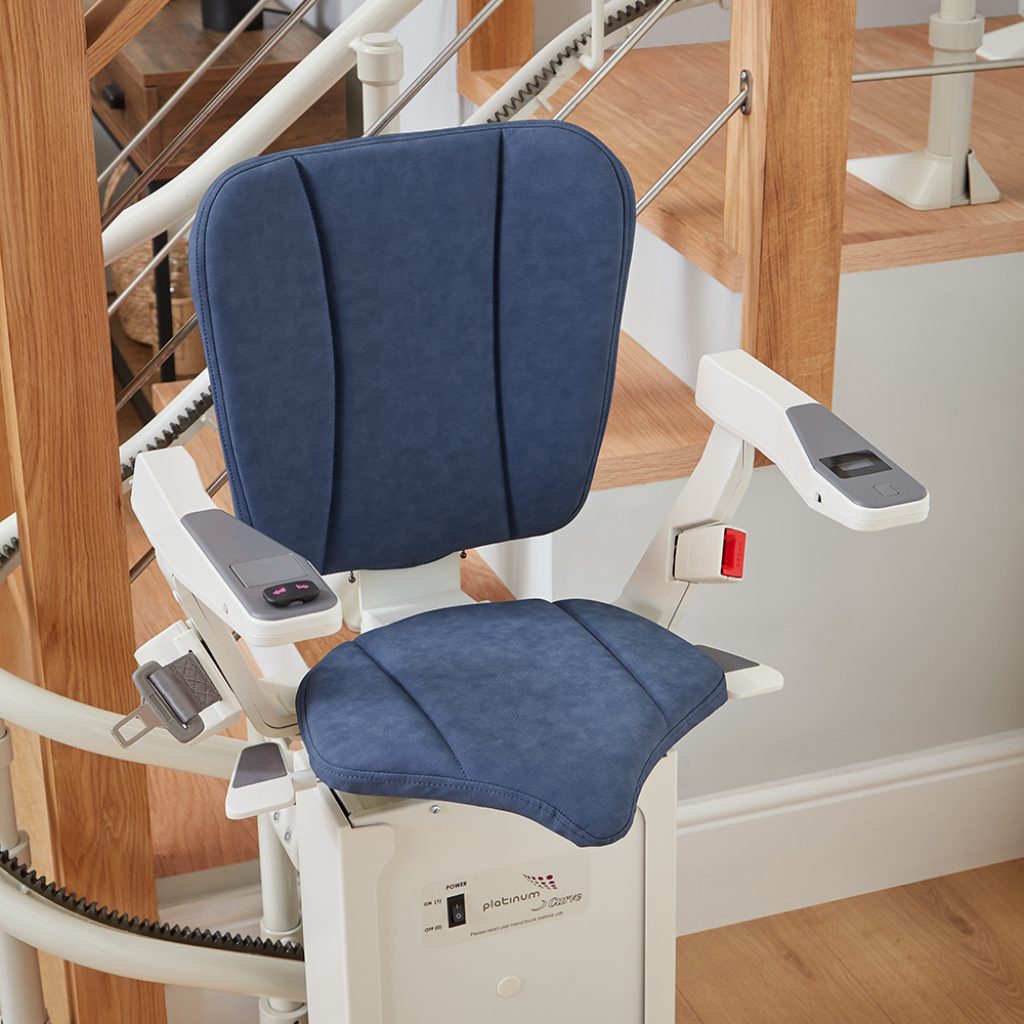

Where we have a smaller user, the ERGO Plus seat base can give additional comfort and stability while on the stairlift by lowering the knees toward the footrest and allowing the feet to rest on the footrest while travelling.

The ERGO Plus stairlift seat can also provide additional knee clearance for taller users ensuring that we can provide a stairlift solution even on the narrowest stairs.

The standard ERGO seat base is a conventional shaped base that will suit most users and stairs.

Where we have a smaller user, the ERGO Plus seat base can give additional comfort and stability while on the stairlift by lowering the knees toward the footrest and allowing the feet to rest on the footrest while travelling.

The ERGO Plus stairlift seat can also provide additional knee clearance for taller users ensuring that we can provide a stairlift solution even on the narrowest stairs.

The ERGO Curve Stairlift’s twin rail drive system uses a robust mechanical levelling system to keep the seat perfectly level while the lift is going around corners and changes in gradient.
Powerful rechargeable batteries mean that there is plenty of power available to the stairlift and that it will keep moving even in the event of a power cut.

All the time the ERGO Curve is in operation is is monitoring safety. Safety sensors are fitted all around the stairlift that will bring it to a halt if it meets any obstruction along the way.

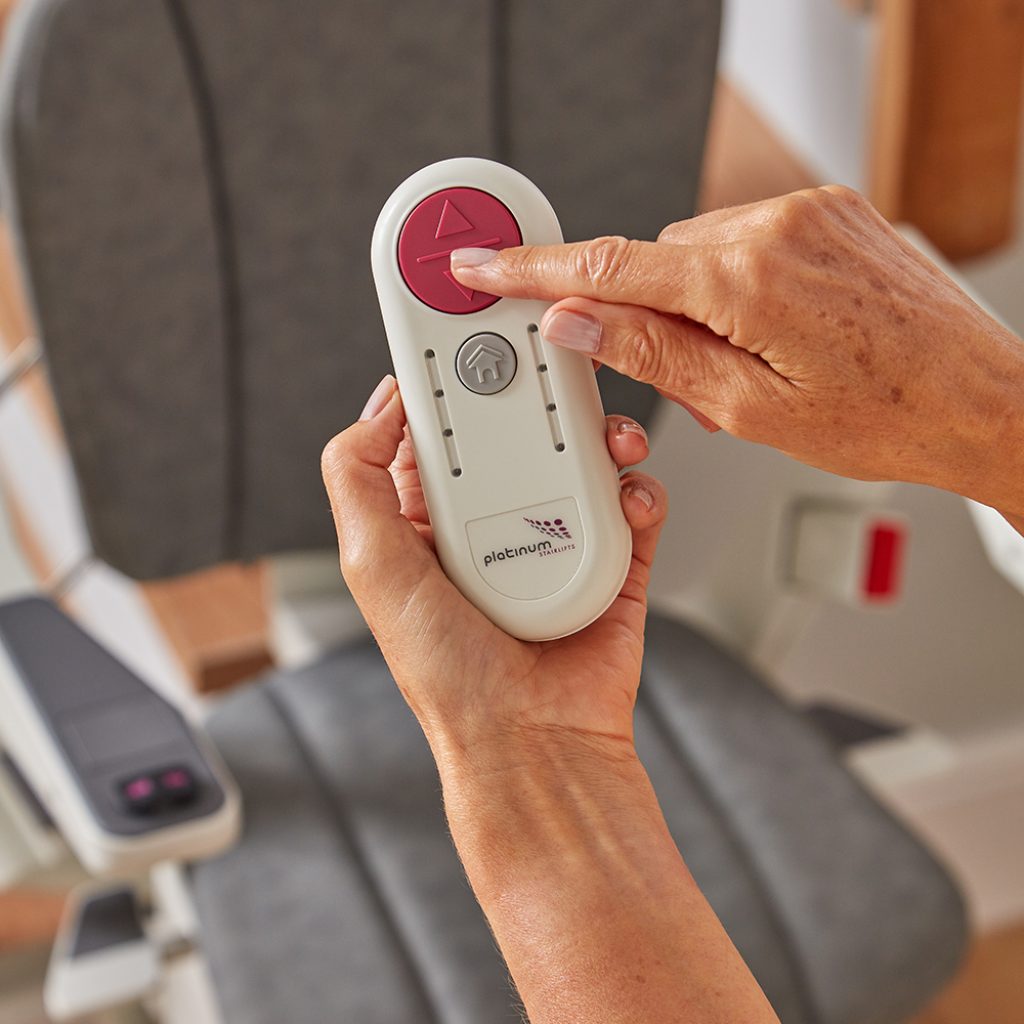

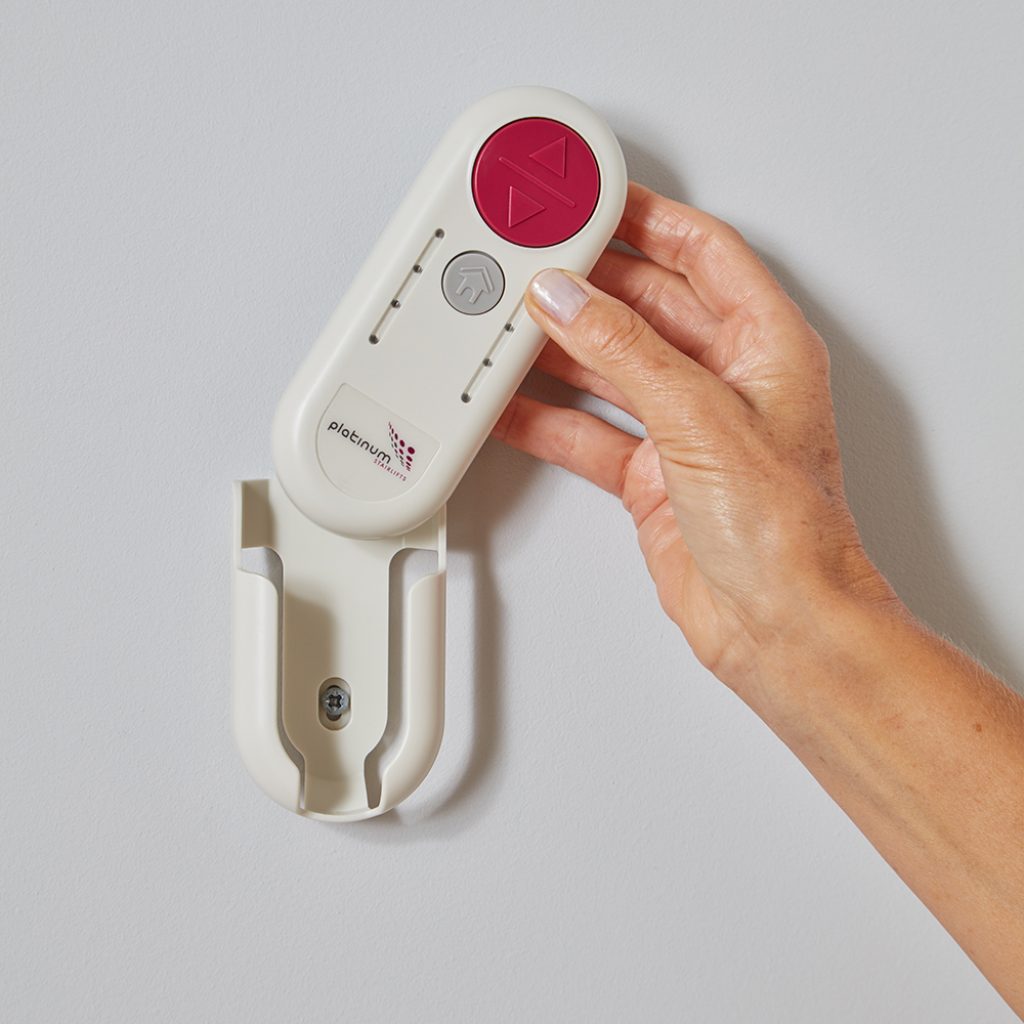

Remotes are supplied for each floor served by the lift to easily call and send from one level to another. Large, clear buttons make sure they are easy to use. Brackets are supplied to fit to the wall if desired.
