Platinum Ergo Ultimate

Whether your staircase is steep, narrow, or curved, the innovative ergo Ultimate stairlift provides the perfect solution.

Logo for Platinum Stairlifts. Text reads

Engineered for Excellence

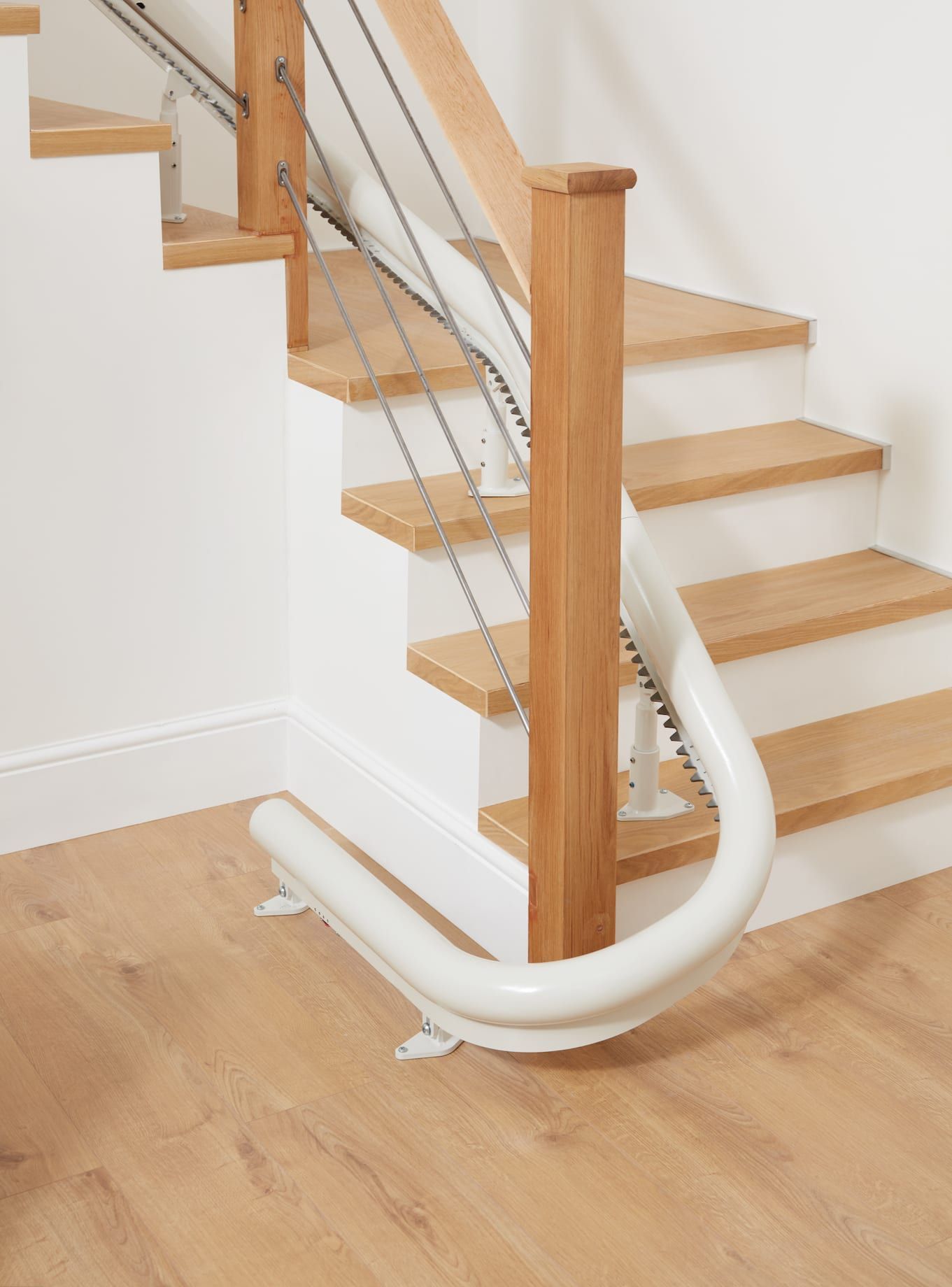

The New Platinum Ergo Ultimate Stairlift is engineered to tackle even the most challenging staircases, offering solutions where many stairlifts fall short. The single tubular rail navigates the tightest corners with ease and offers a contemporary look, fitting low across landings and along the stairs to blend with your home. The Ultimate rail can even be finished in a range of colours to help it match any decor.

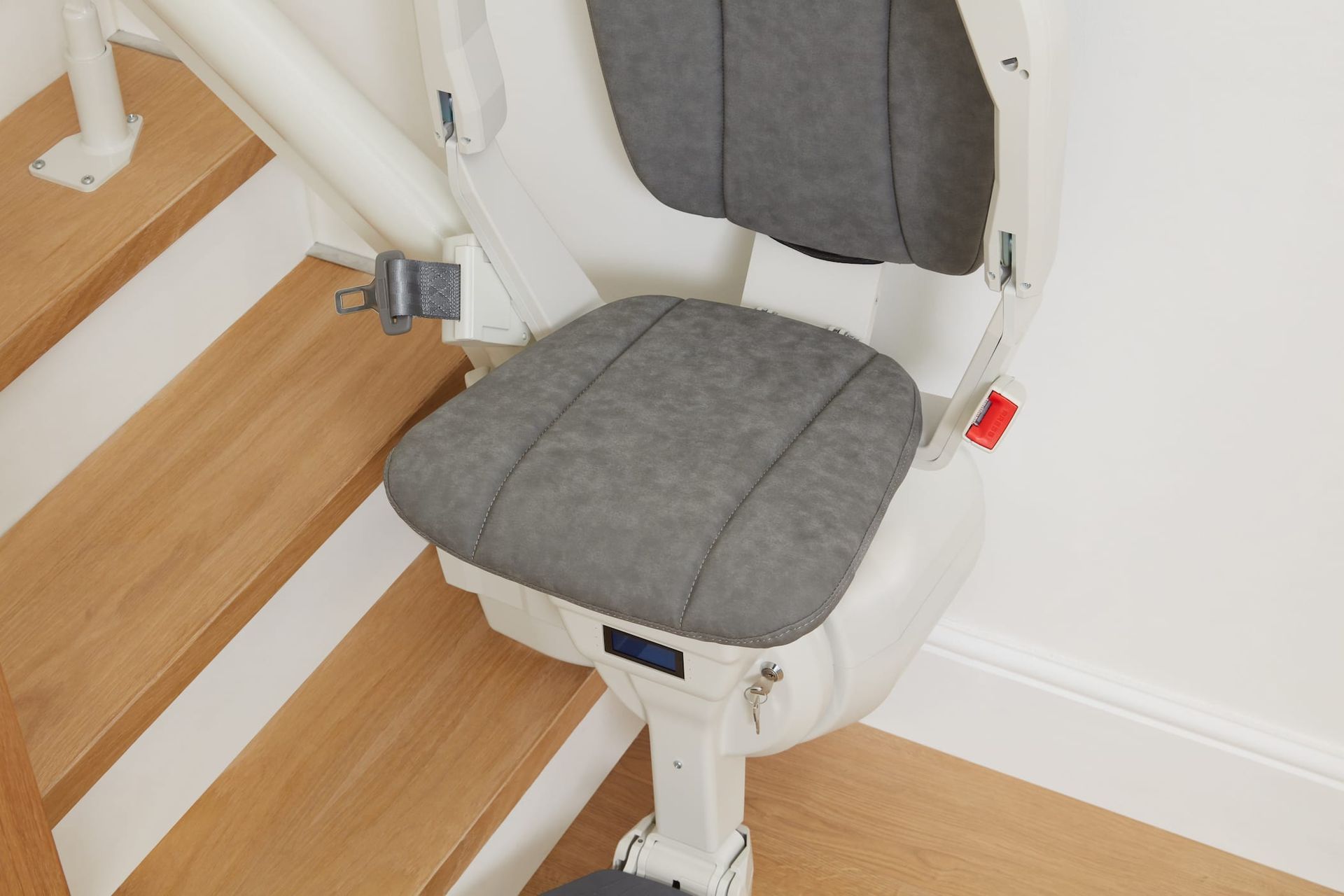

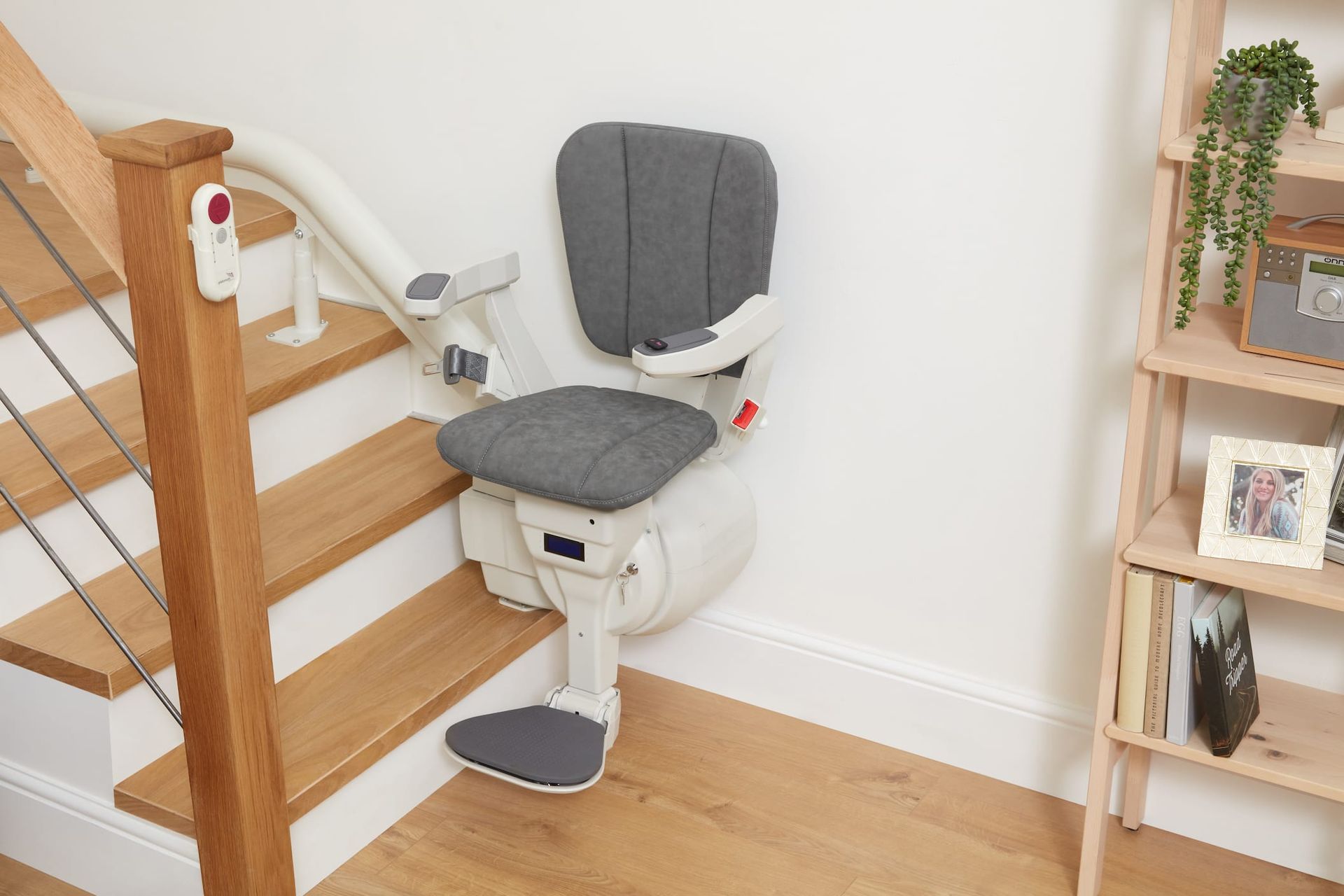

Stair lift with gray seat on wooden stairs, installed indoors.

Unparalleled Comfort with the ergo Chair

The New ergo Ultimate stairlift is designed with your comfort and convenience in mind.

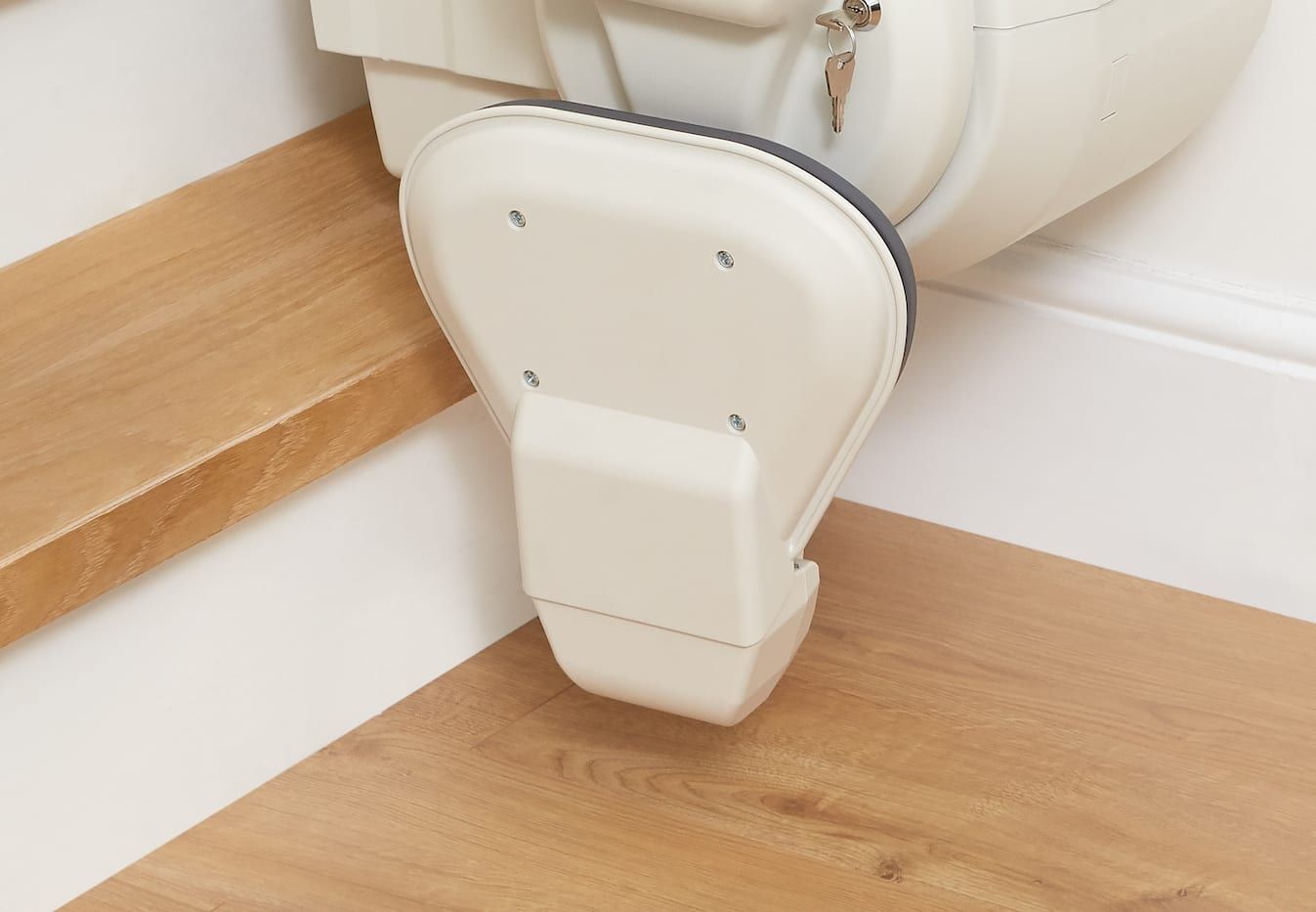

Beige stairlift footrest on light wood floor and step.

The Power Footplate

As standard, The Ultimate footrest lifts effortlessly when the seat is raised thanks to a mechanical linkage. Some users prefer to move the footrest out of the way before standing or sitting down. The powered footrest option allows this, adding further comfort and convenience.

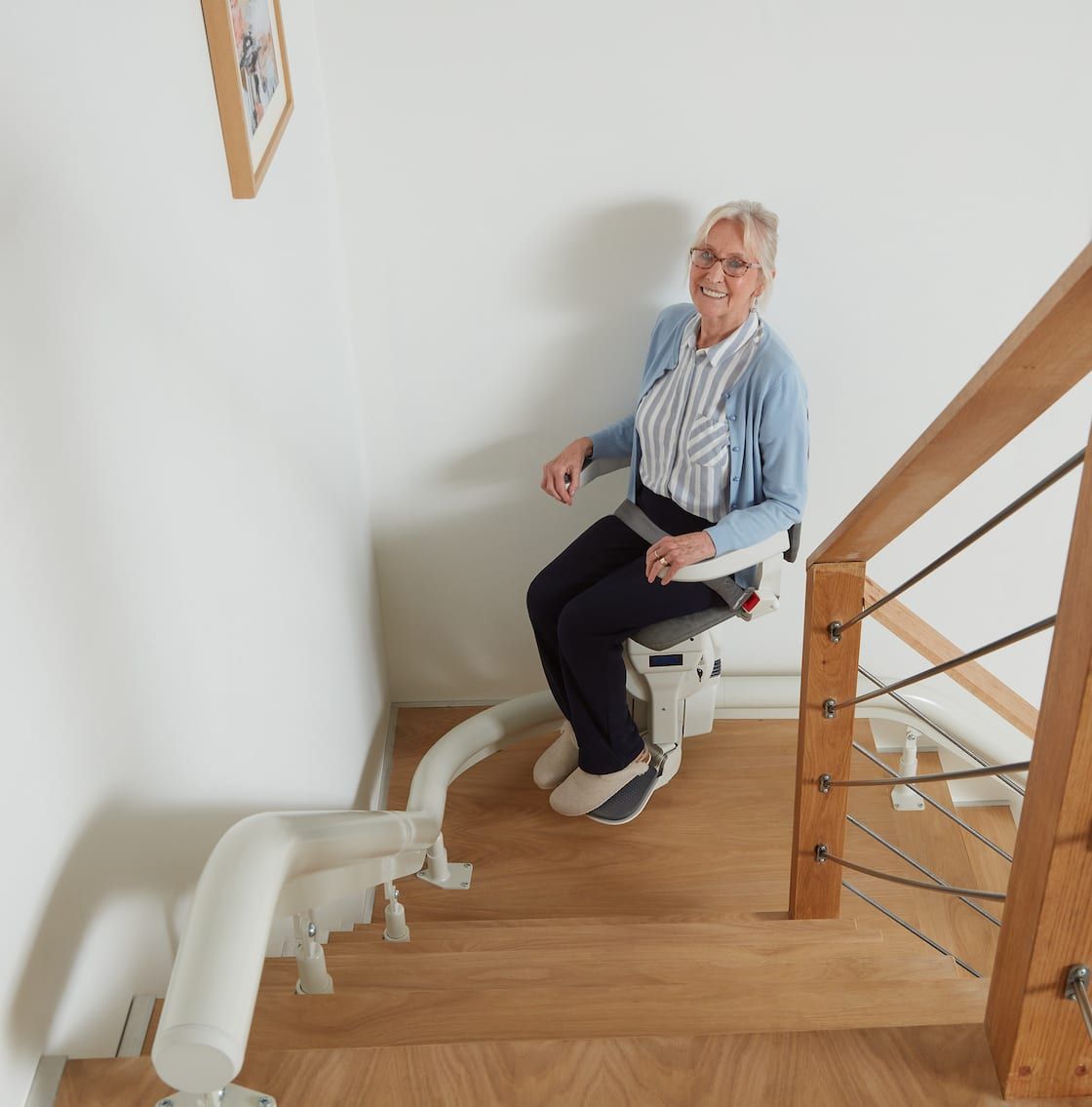

Woman on a stairlift smiles, ascending a wooden staircase beside a white wall.

The all-new Active Power Swivel

The Ergo Ultimate can turn at either end of the stairs, to maximise space and improve access, especially in narrow hallways. Additionally, the seat can be swivelled at any point on the stairs which allows us to navigate around tight points that might otherwise become an obstacle by turning the chair to face either upstairs or downstairs while travelling.

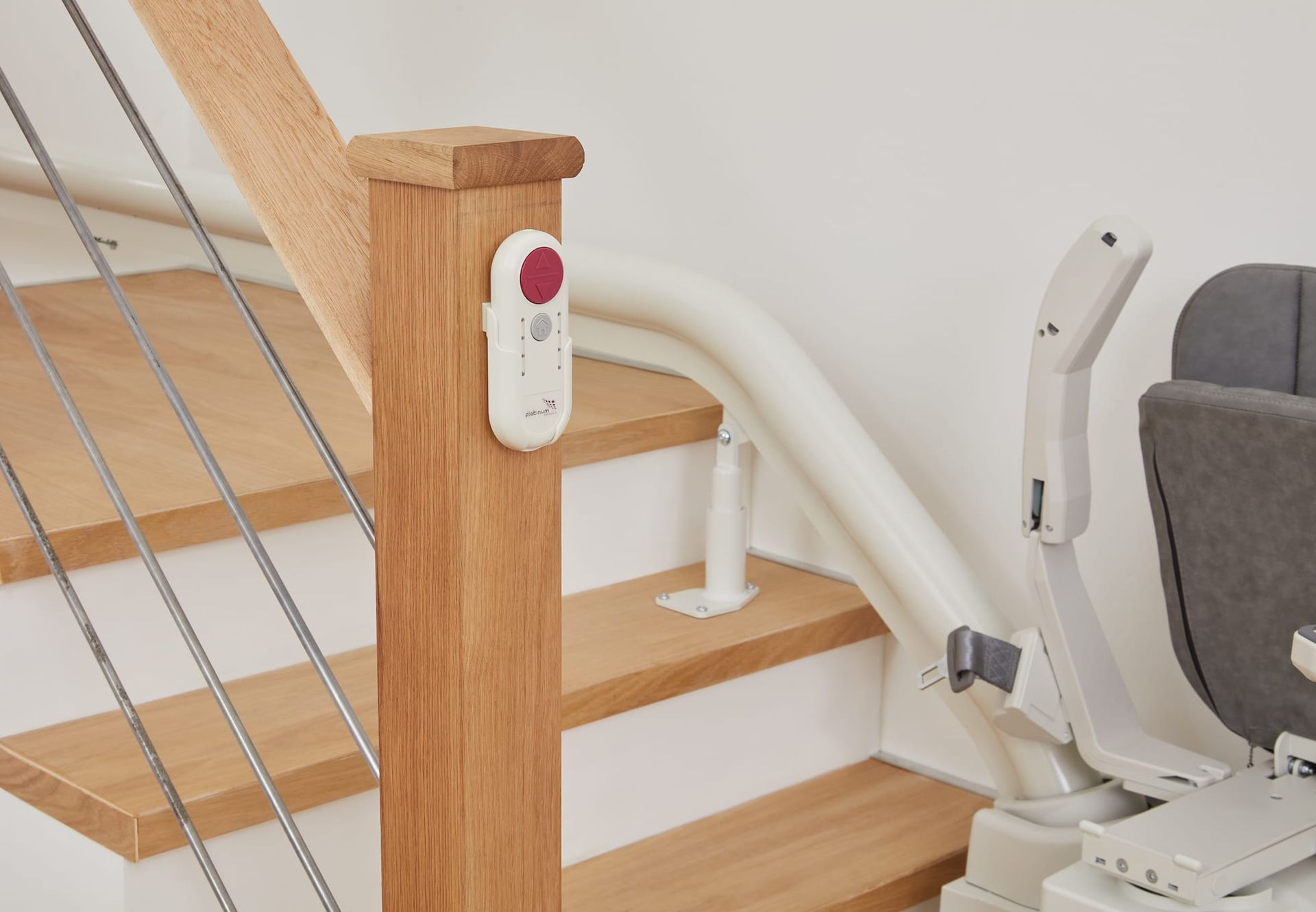

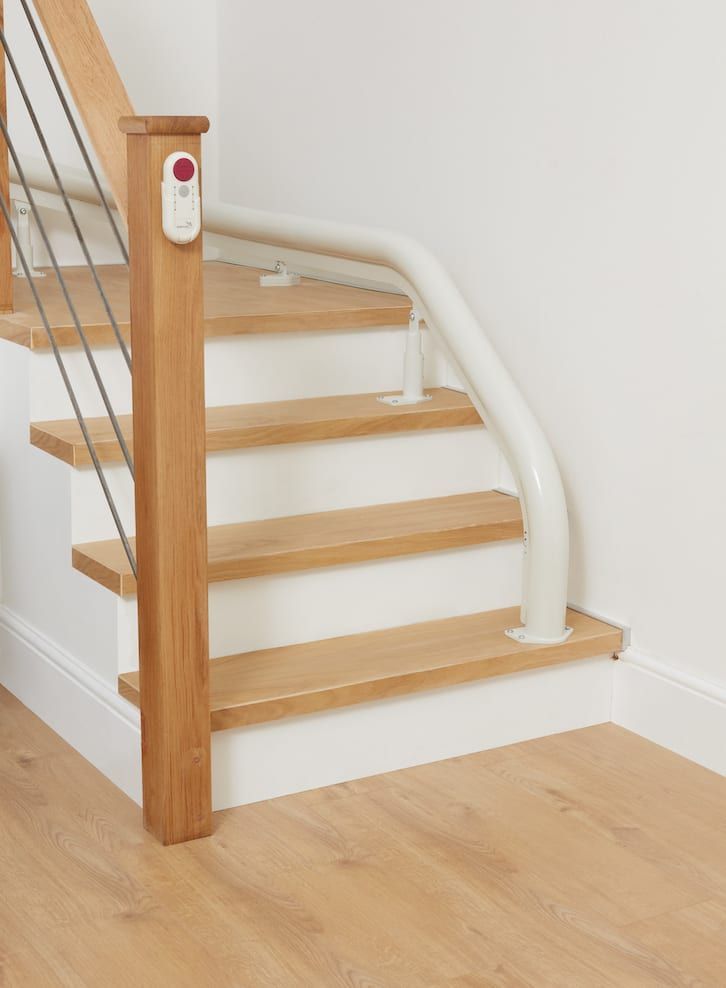

Staircase with wooden steps and a white handrail for accessibility. A remote control is on a wooden post.

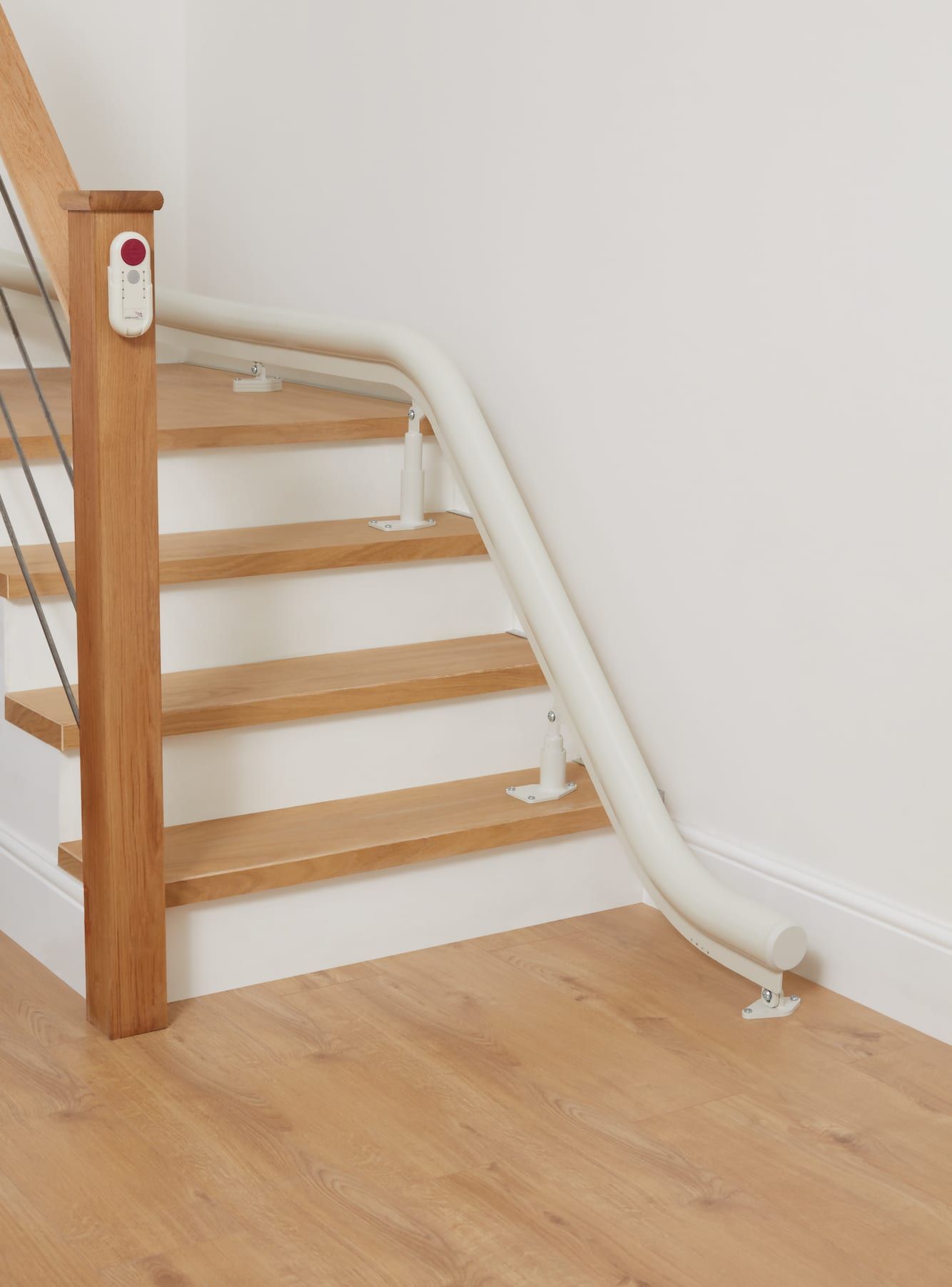

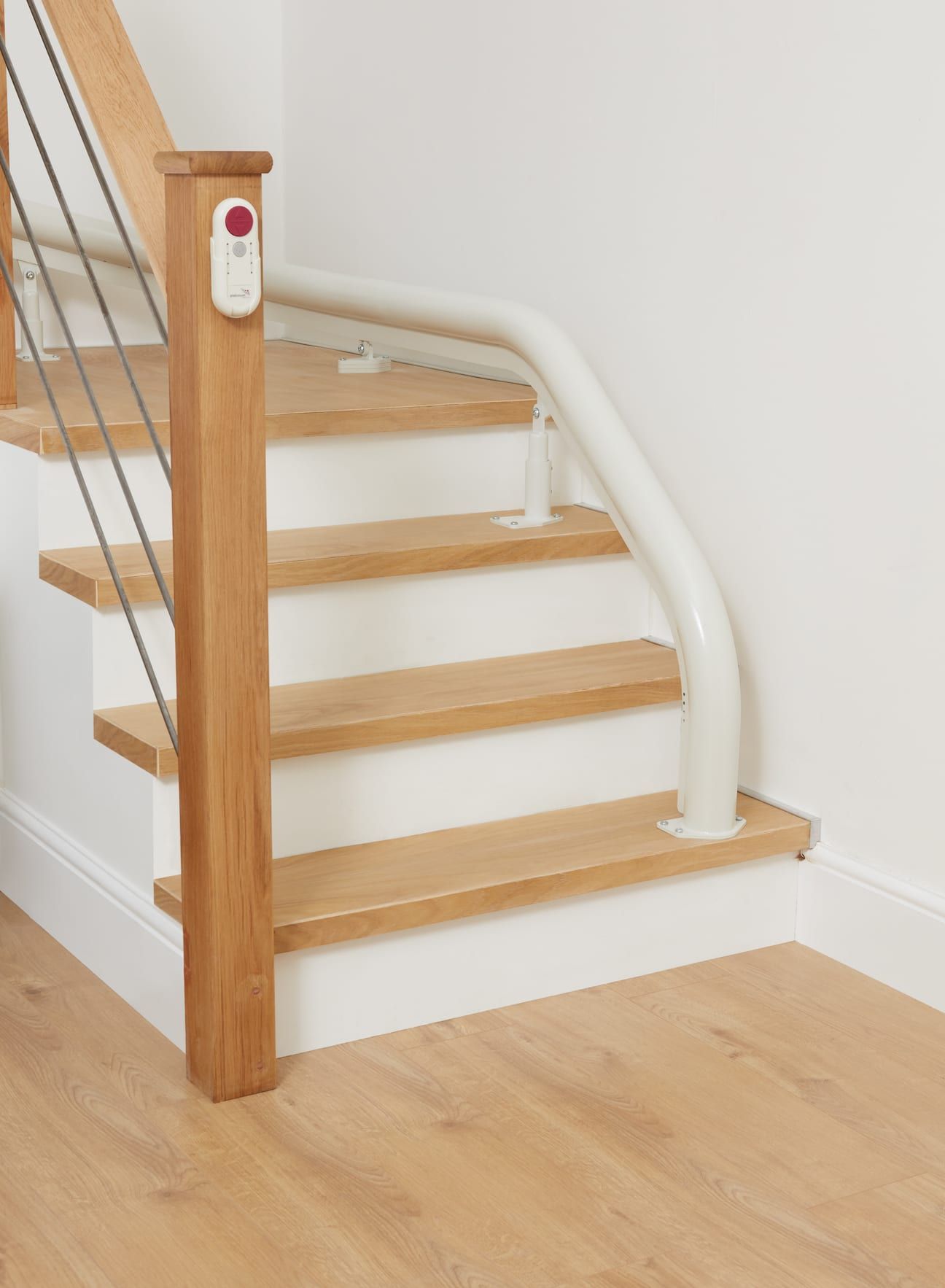

The First Step Start

The Ergo Ultimate is the only stairlift available with this innovative feature. The rail finishes on the 1st step, while the lift itself comes conveniently to the lower floor level to get safely on and off the chair.

The 1st step start ensures that there is no fixed obstruction on the downstairs floor, perfect for an open hallway or where there is a door near the bottom of the stairs.

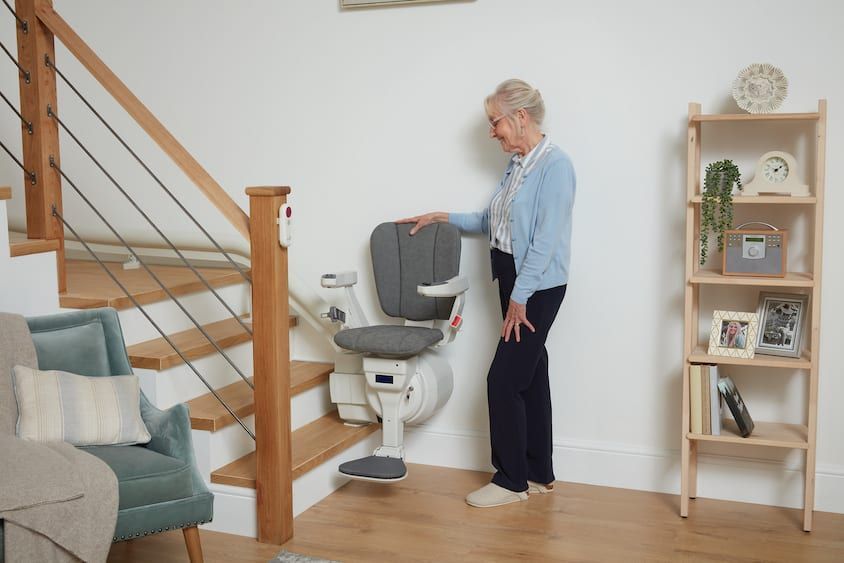

An older person standing next to a stair lift installed on a wooden staircase in a home.

Up to 160kg Weight Capacity

Every Ergo Ultimate is rated to 120kg, but if required, the 160kg option allows us to accommodate the widest range of client needs.

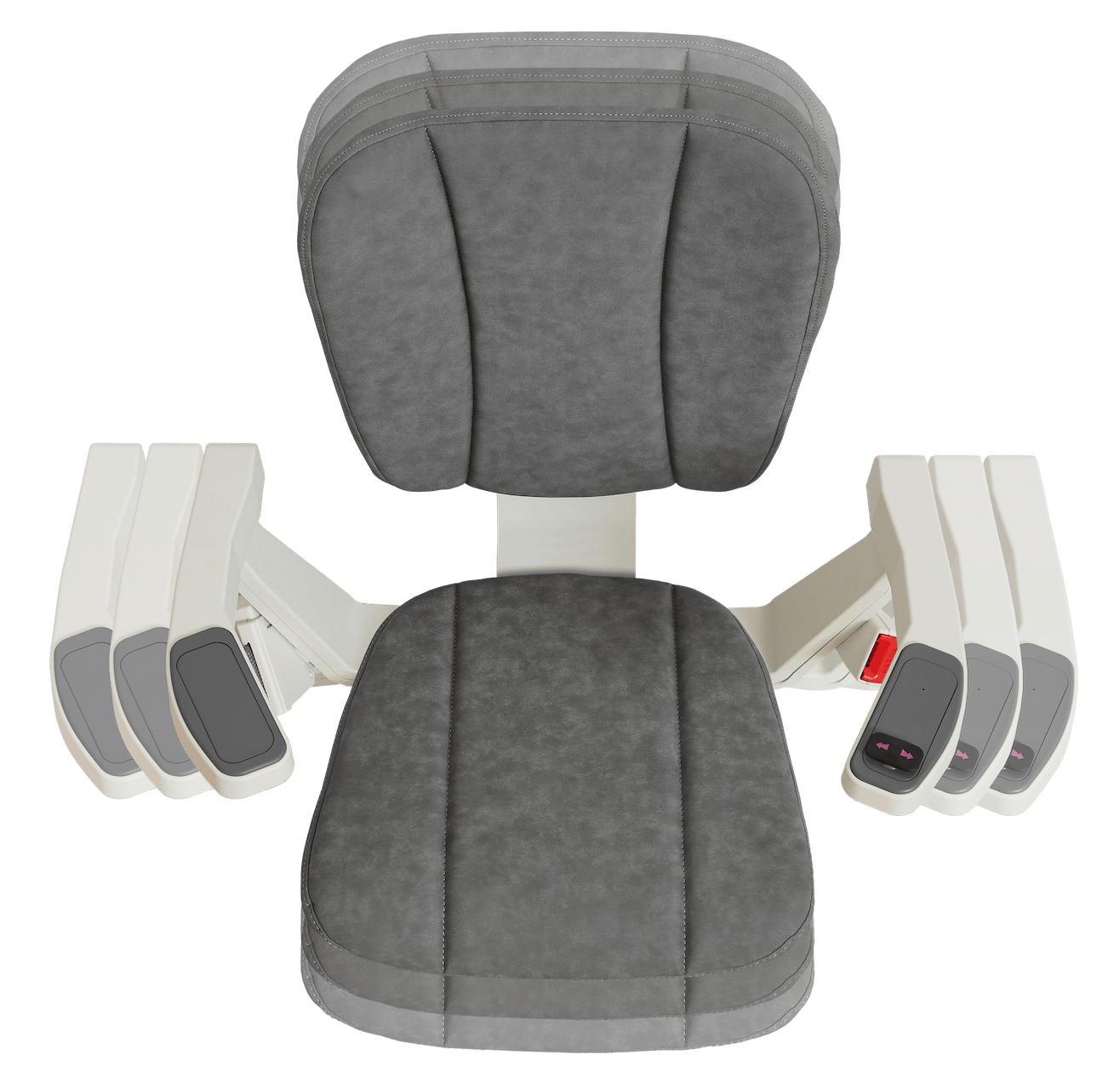

The Ergo seat is fully adjustable for width and depth, ensuring that it is safe and comfortable for all.

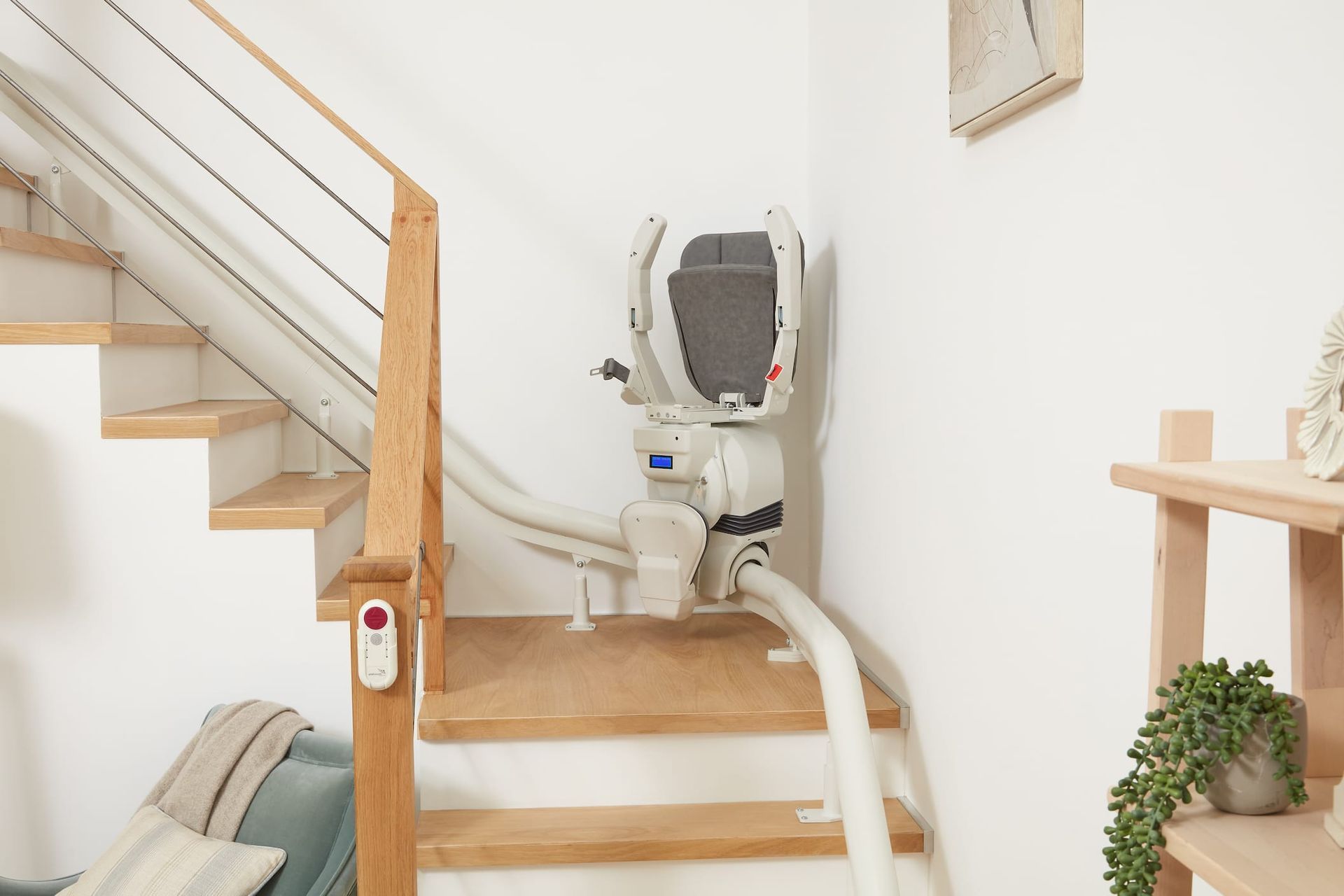

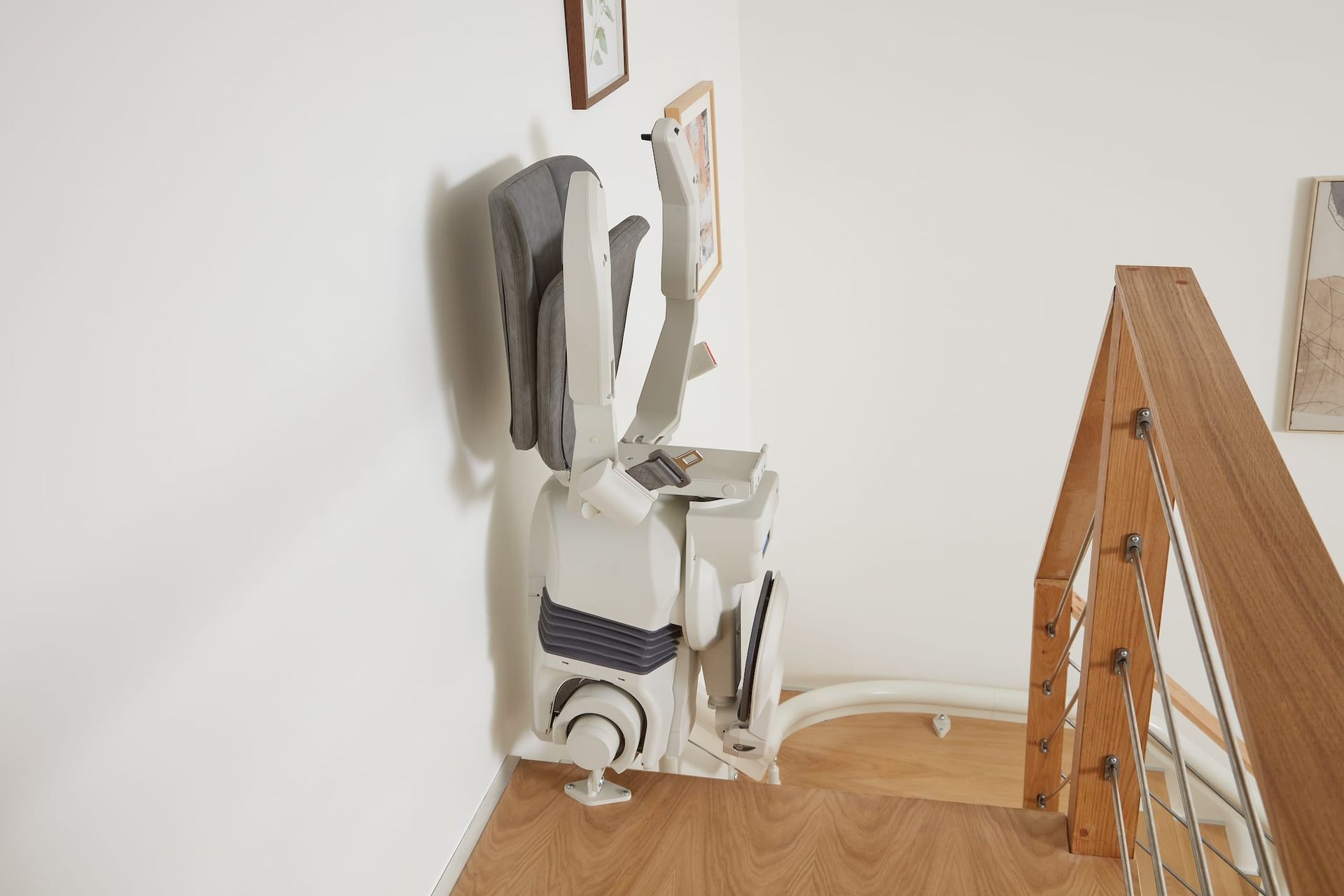

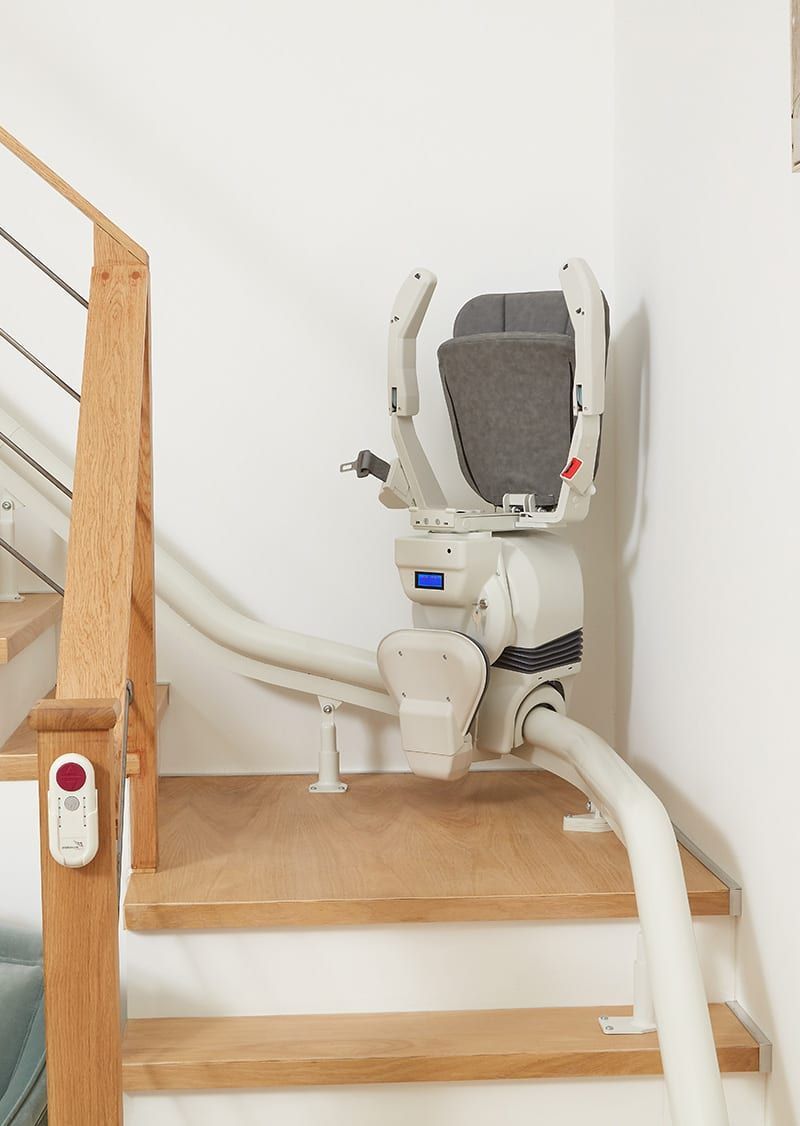

Stairlift on wooden stairs with white walls. The chair is unoccupied, angled towards the top

Battery-powered reliability

Operates seamlessly even during power cuts, so you’re never left stranded.

SPEED

0.12m/s Maximum

DRIVE

Rack & Pinion

WEIGHT CAPACITY

120kg (19St) or 160kg (25St)

STAIRCASE INCLINE

Up to 75°

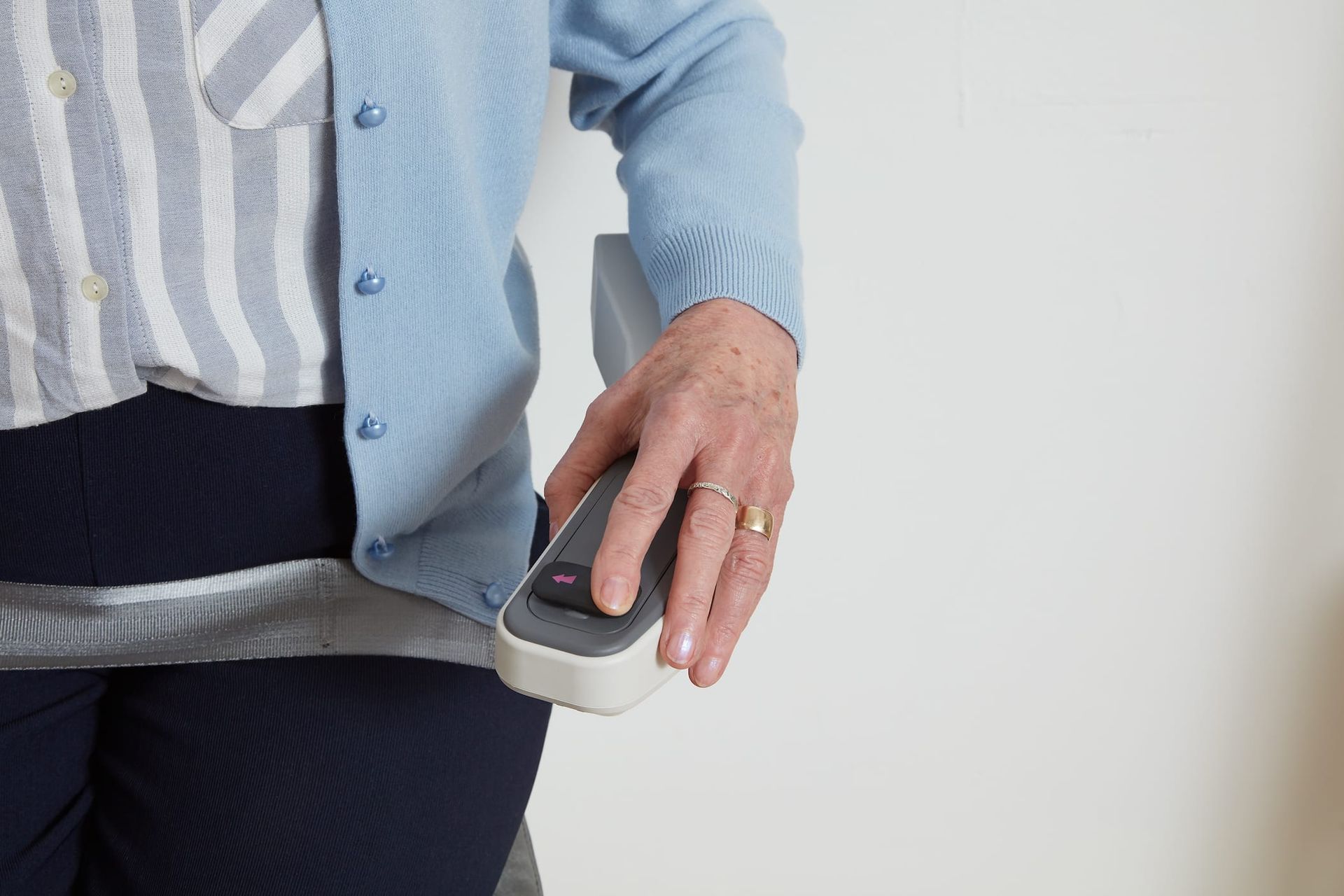

OPERATION

Joystick or rocker switch on arm, control type & hand configurable at install.

CERTIFICATION

BS EN 81-40:2020 Machinery Directive 2006/42/EC

SEAT SWIVEL

Manual Swivel as Standard/Active Power Swivel Option

FOOTPLATE

Linked to Seat / Power Footplate Option

SEAT HEIGHT

510mm seat to floor, Seat to footplate height adjustable to 2 positions

SAFETY

Safety edges around drive unit and underside of footplate to protect

against trapping hazards

Over-speed governor

Interlocked Retractable Reel Seat belt

Diagrams of office layouts showing chair and desk arrangements with dimensions in inches.
